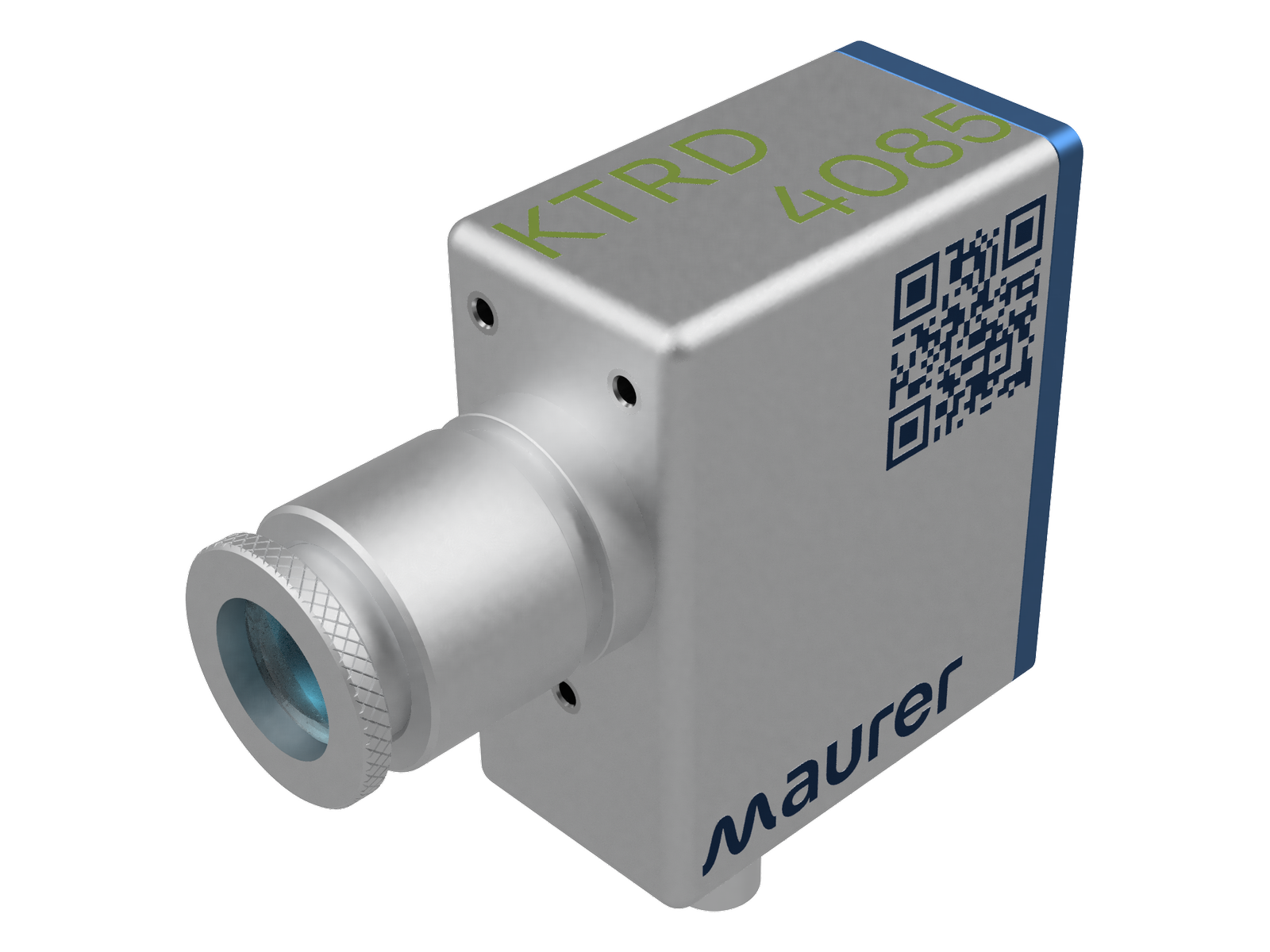

Compact pyrometer – KTRD 4085

Measuring ranges from 600 °C to 3000 °C

1. 600 – 1200 °C (D = 85)
2. 650 – 1300 °C (D = 85)
3. 700 – 1400 °C (D = 85)
4. 750 – 1500 °C (D = 85)
5. 800 – 1700 °C (D = 85)
6. 900 – 2000 °C (D = 85)
7. 600 – 1600 °C (D = 85) | 1112 – 2912 °F
8. 700 – 2000 °C (D = 85) | 1292 – 3632 °F
9. 850 – 2500 °C (D = 85) | 1562 – 4532 °F
10. 900 – 3000 °C (D = 85) | 1652 – 5432 °F

Special measuring ranges upon request

Categories: Pyrometer, Compact

Description

Performance, precision and reliability – you can count on MAURER pyrometers. The compact and easy to use design, as well as a large selection of matching accessories, enables you to quickly integrate the pyrometer into your surroundings.

The most important features and characteristics at a glance:

Spectral range: 0,85 – 1,1 µm
Short response time of 1 ms
Emissivity from 100 – 10 %, adjustable directly at the pyrometer or via interface
Green target light (LED) that is exactly identical to the actual measuring spot in position and size
With Vario-optic for exact focusing on the measuring spot
Use with either digital and analogue output
1 limit output (open collector)
Operating voltage 24 V DC
Free software (IR-LOG) for parameter setting, data recording and storage

Scope of Applications
Processing of steel, iron, non-ferrous metal and wires, ceramics, glass tub, glass arching, as well as hardening, rolling, soldering, forging, welding, transforming, induction heating, vacuum furnace, etc.

Configurations:

High-Speed version: KTRD 4085-HS
Special objectives and measuring ranges upon request

Spectral range	0,85 – 1,1 μm
Target marking	Target light
Response time	1 msec
Measurement uncertainty	0,5 % ± 1 °C (ε = 1, Tu = 23°C, T 95 = 1s)
Temperature dependence	0,01 % / °C
Reproducibility	0,1 %
Emissivity	100 – 10 %, adjustable directly at the pyrometer or via interface
Resolution	< 0,1 % at the analogue output < 0,1 °C at the interface
Analogue output	0 – 20 mA bzw. 4 – 20 mA (Load max. 500 Ω)
Limit output	1x 24 V 100 mA (open coll.)
Interface	RS 232 ± 50 V isolated or RS 485 ± 70 V isolated
Device connection	8-pol. plug connector for RS485 7-pol. plug connector for RS232
Operating temperature	0 – 60 °C, Optik 150 °C
Storage temperature	-10 °C – 70 °C
Permissible humidity	35 – 85 % RF (non condensing)
Supply voltage	24 V DC ± 10 %
Power consumption	< 100 mA
IP code	IP65
Dimensions (LxHxW) / Weight	30 x 65 x 80 mm / 0,19 kg
Other	Maximum memory, peak value memory double, adjustable time and threshold value, erasing after time, external contact, by software, after every measuring object
