Controller & Display Unit AED 1012
Display, Control and Data Logging for MAURER Pyrometers

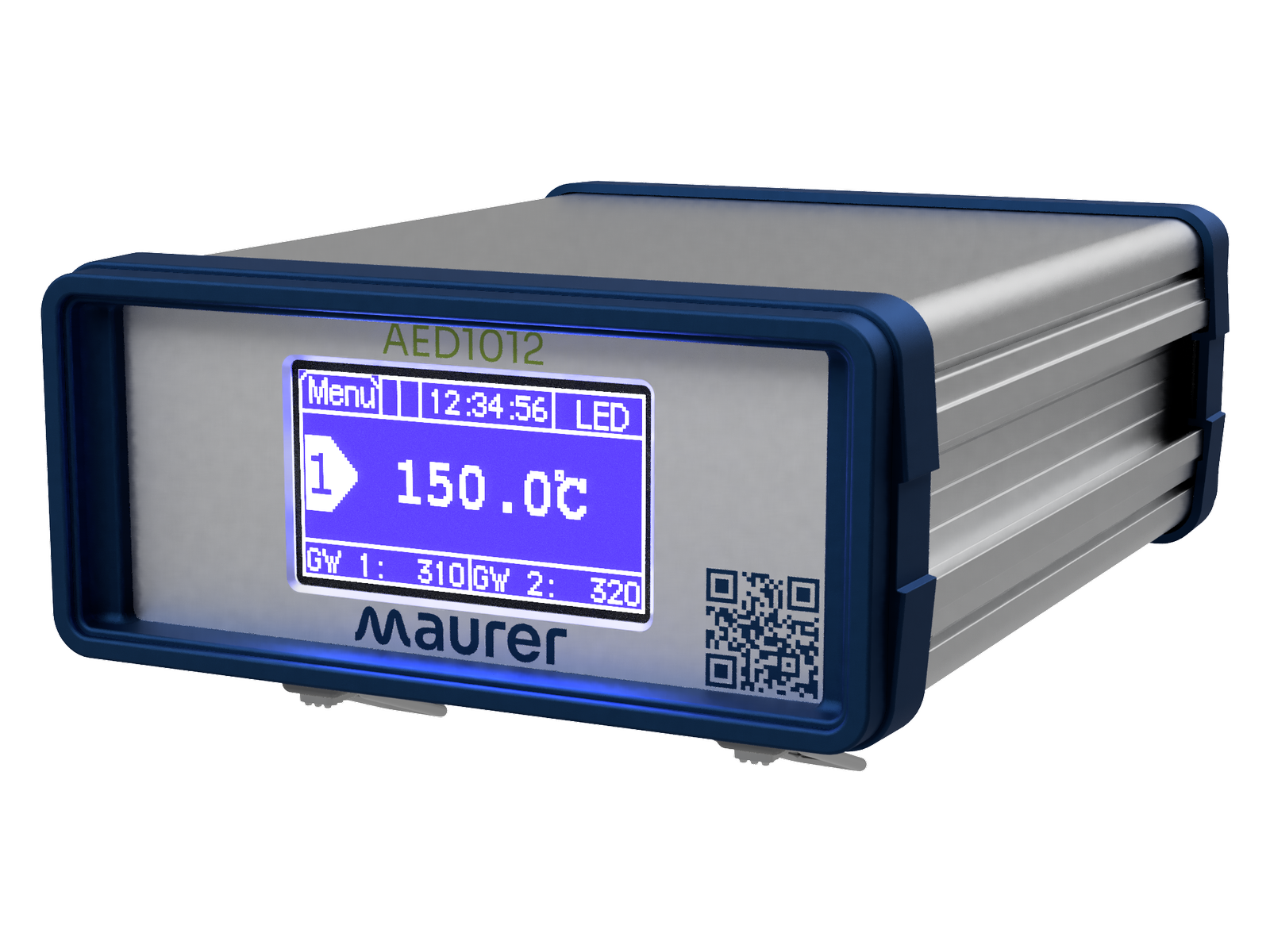

The AED 1012 controller & display unit gets more out of your MAURER pyrometer. It shows all readings clearly on a touch panel, powers the pyrometer, logs measurement data to a USB stick and lets you set all parameters directly on the unit, without a computer. Depending on the version, the AED 1012 also controls your process: as a PID controller for generator power, or as a program controller for complex temperature profiles. Available as a benchtop unit or in a DIN housing for panel mounting. Developed and manufactured in Germany.
Key benefits
- Everything at a glance: multilingual touch panel with 6-digit temperature display in °C or °F
- Configuration without a PC: set all pyrometer parameters directly on the unit
- Ultra-fast: sampling rate of 50 µs
- Built-in data logger: recording to USB stick or PC, with real-time clock
- Switching outputs: 2 or 4 separately adjustable opto relays (250 VAC / 100 mA), response time 3 ms, hysteresis adjustable from 0 to 50 °C
- Several pyrometers on one unit: up to six pyrometers via RS485

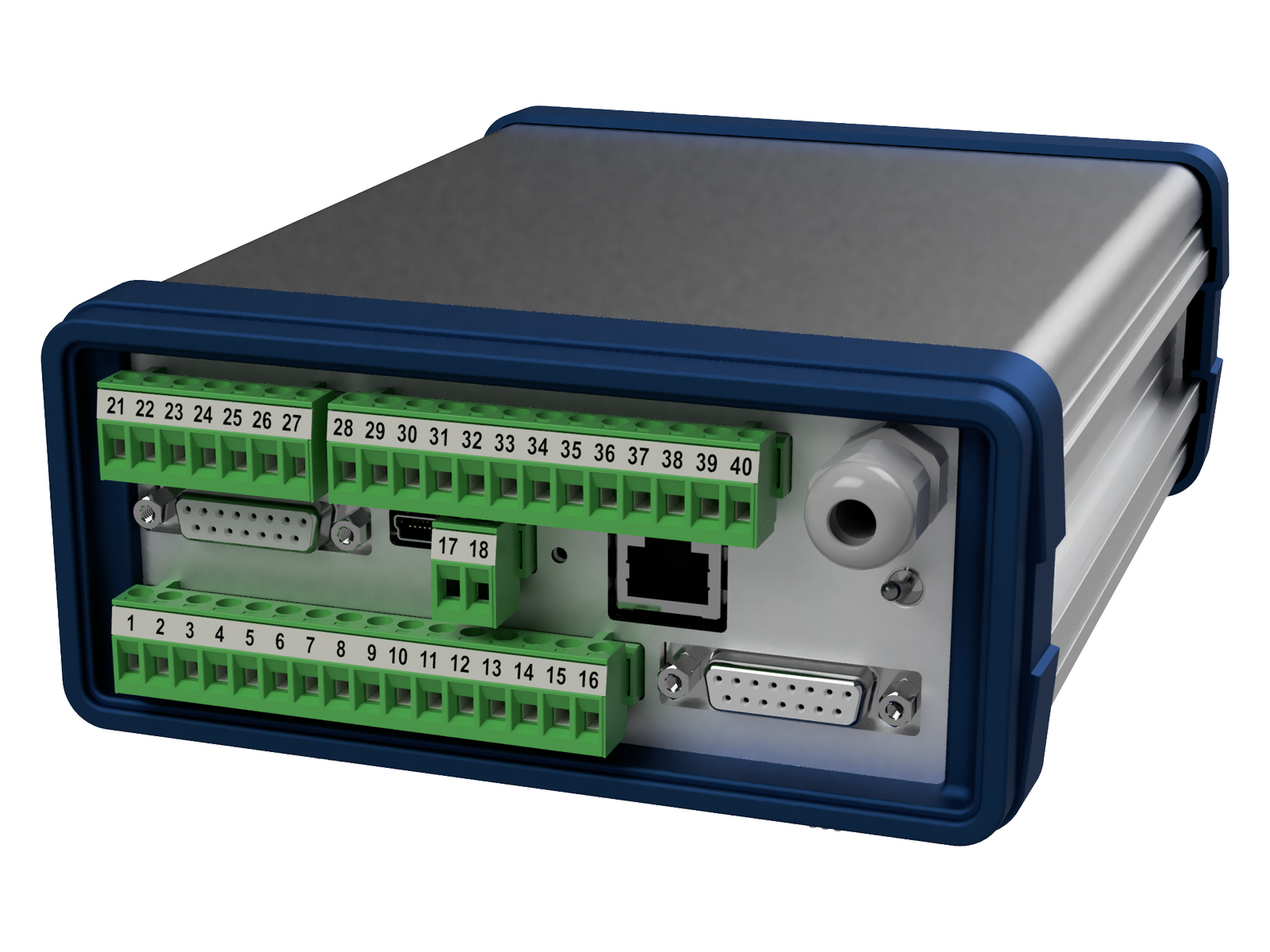

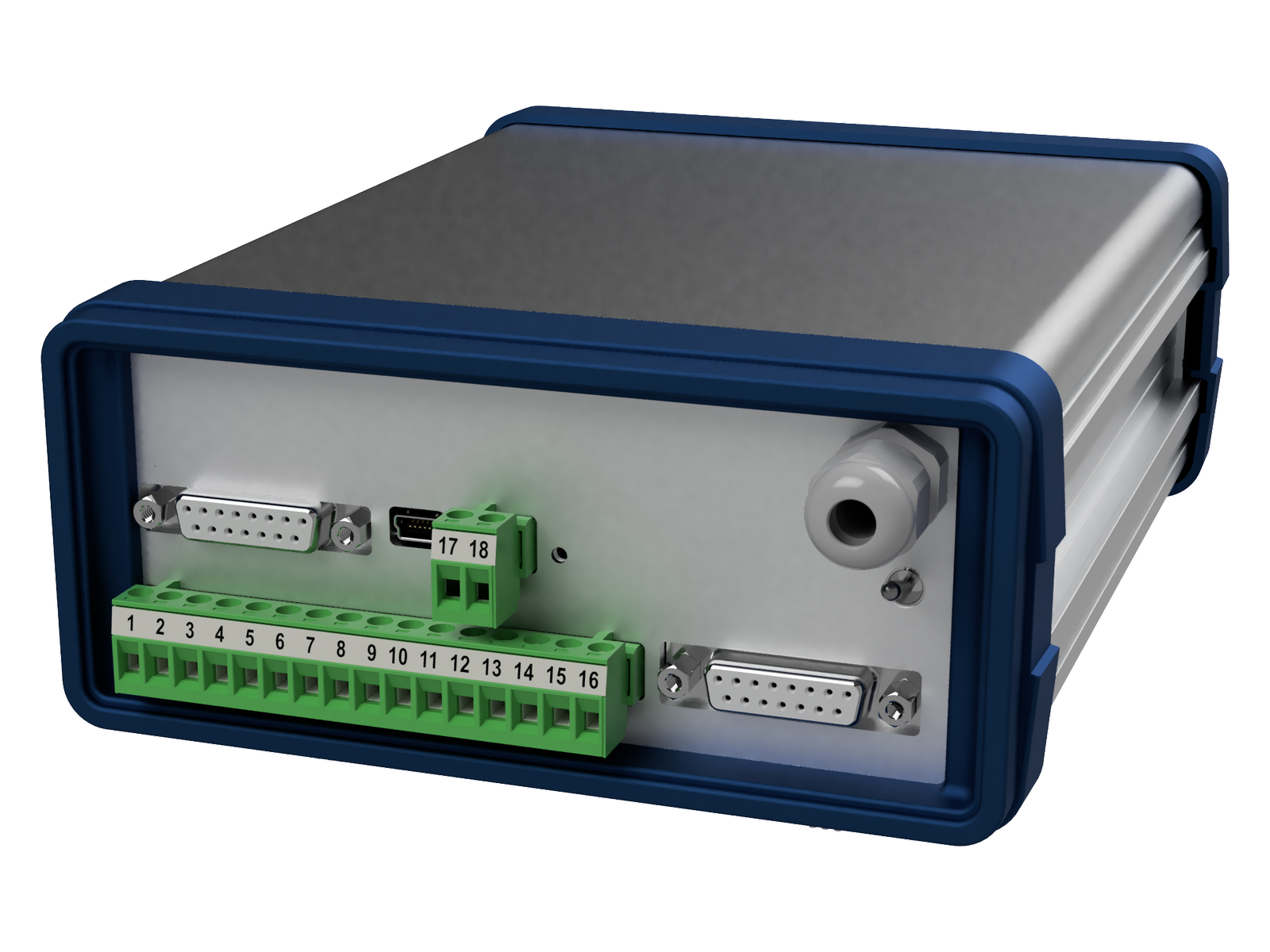

- Easy connection: USB 2.0, optional PROFIBUS, PROFINET, EtherCAT or Ethernet
- For analog and digital pyrometers: range freely scalable from −50 °C to 4000 °C for analog pyrometers, automatic for digital ones
- More functions: automatic determination of emissivity and transmission, 24 V power supply for the pyrometer, user management with PIN protection
The right version for your task
| AED 1012 | AED 1012-C | AED 1012-PC | |
|---|---|---|---|
| Function | Display & evaluation | PID controller | PID program controller |
| Typical task | Measure, monitor, record | Control generator power to a set temperature | Run complex temperature profiles automatically |
| Control | – | Setpoint manual or external (0/2–10 V), autotune | Up to 500 programs with 1023 steps, autotune |
| Control output | – | 0/4–20 mA, 0–10 V or PWM | – |
| Switching outputs | 2 (optional 4) | 2 (optional 4) | 4 |

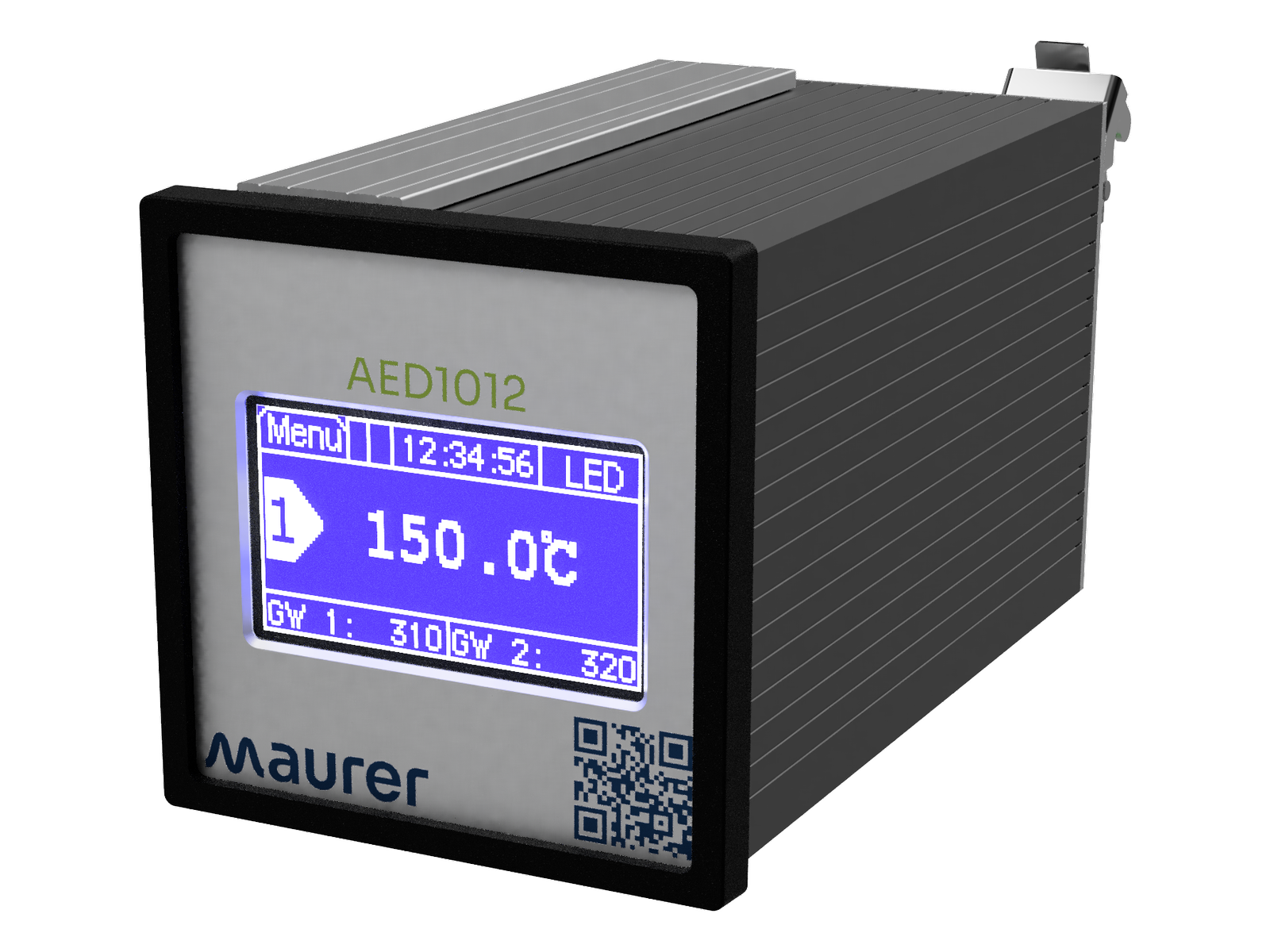

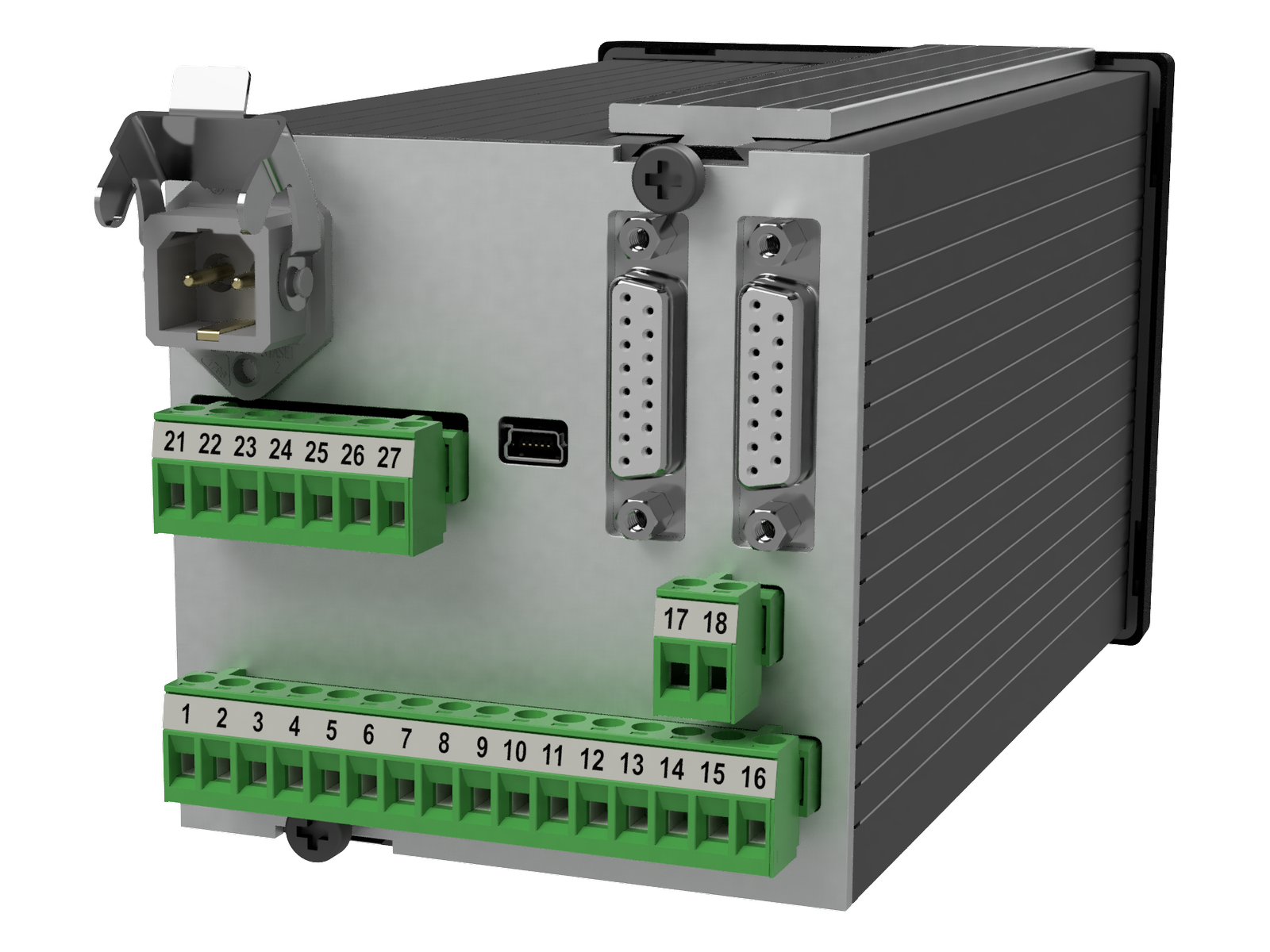

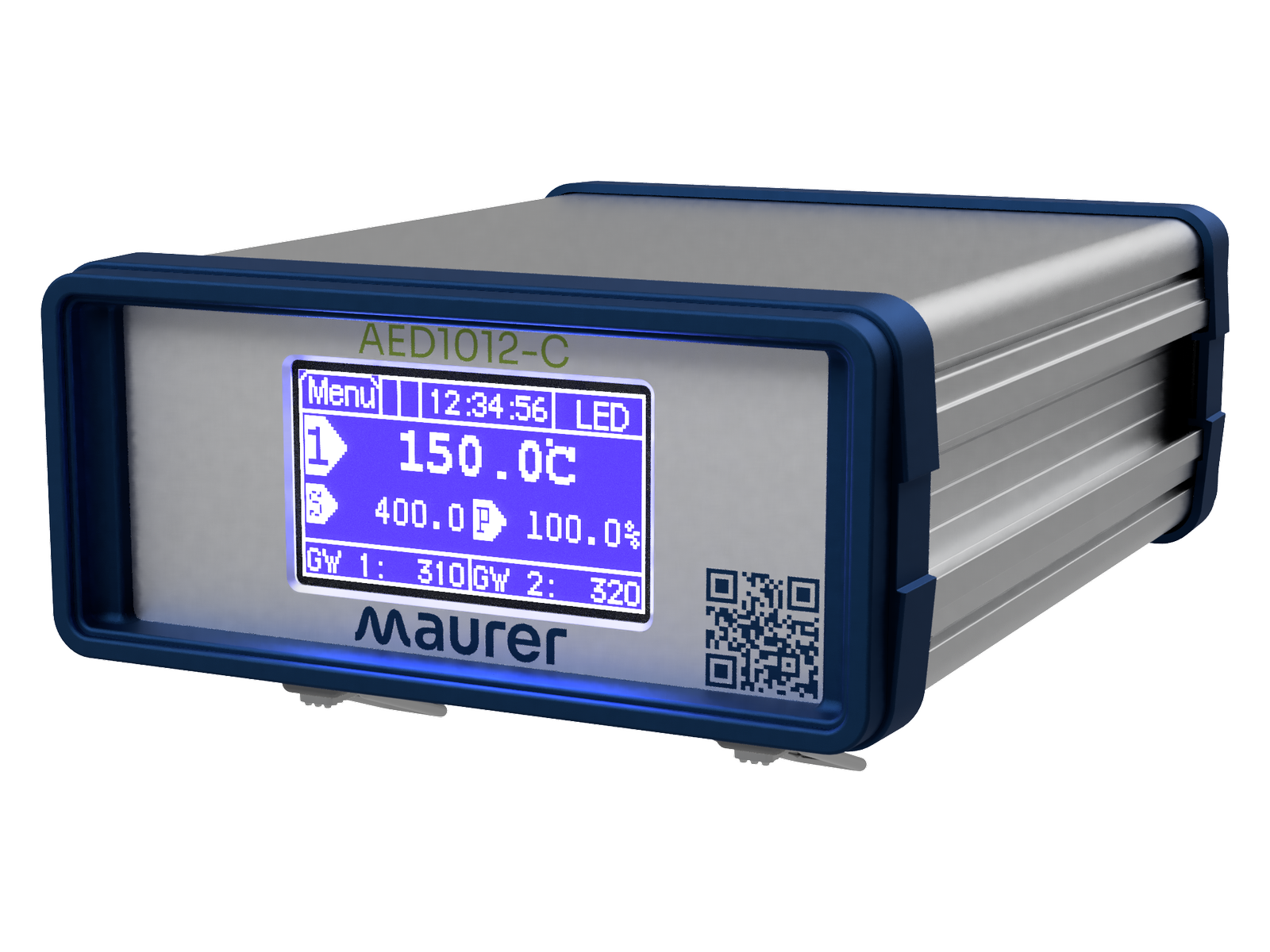

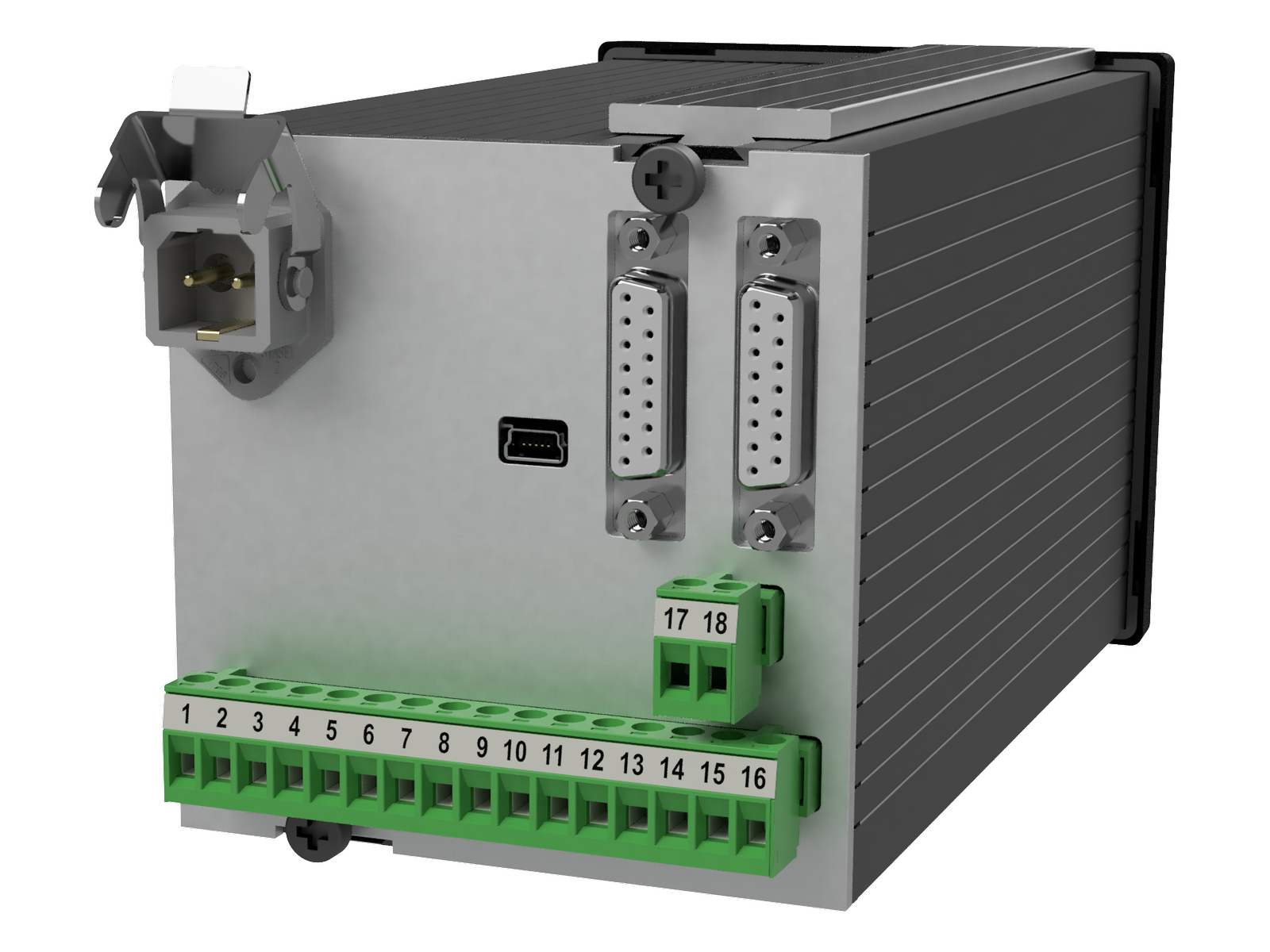

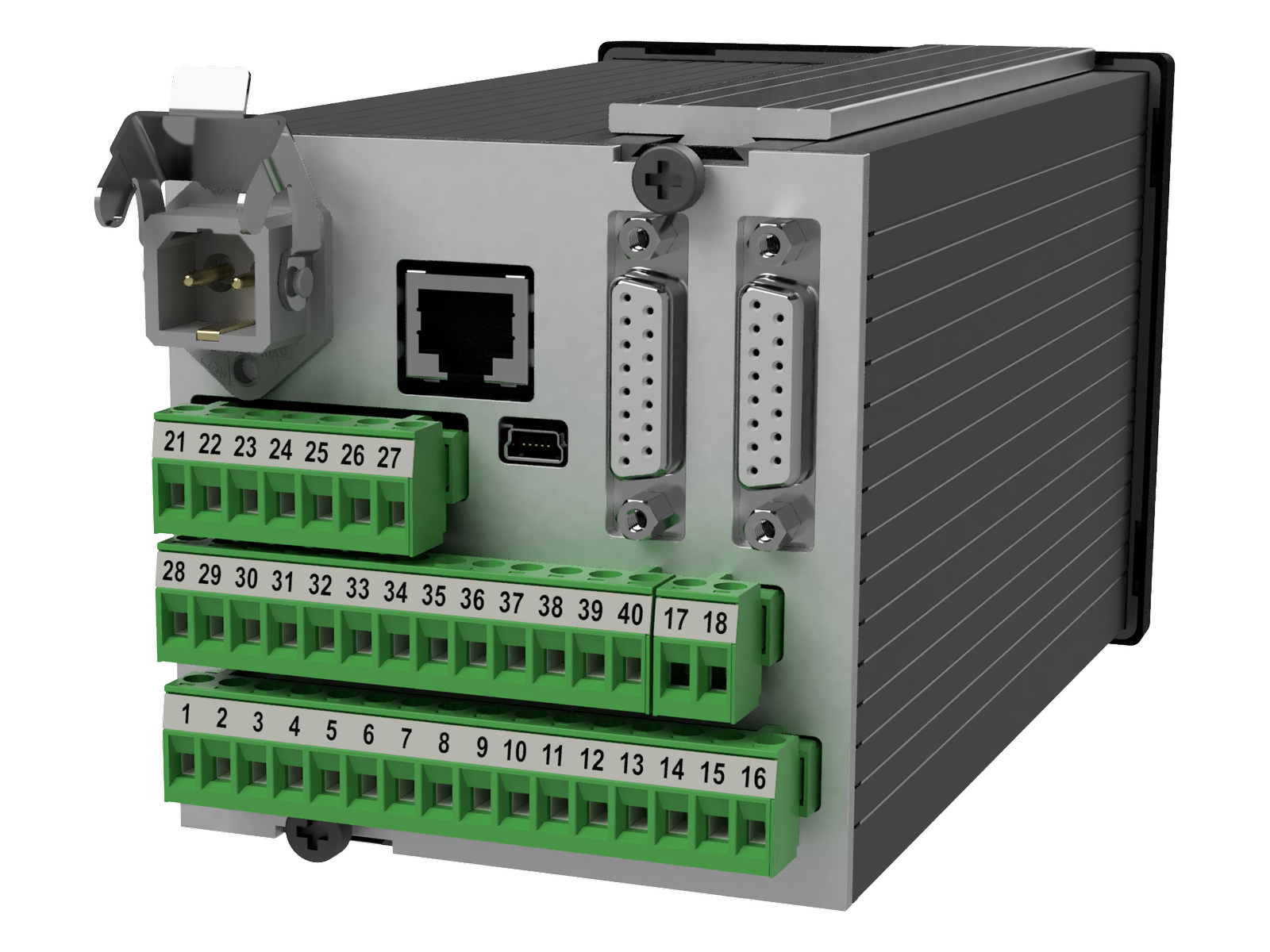

All three versions are available as a benchtop unit with feet or in a DIN 43700 housing for control cabinet mounting.
AED 1012 – Display and evaluation
The basis for every MAURER pyrometer: display readings, monitor limits, record data and configure the pyrometer conveniently.

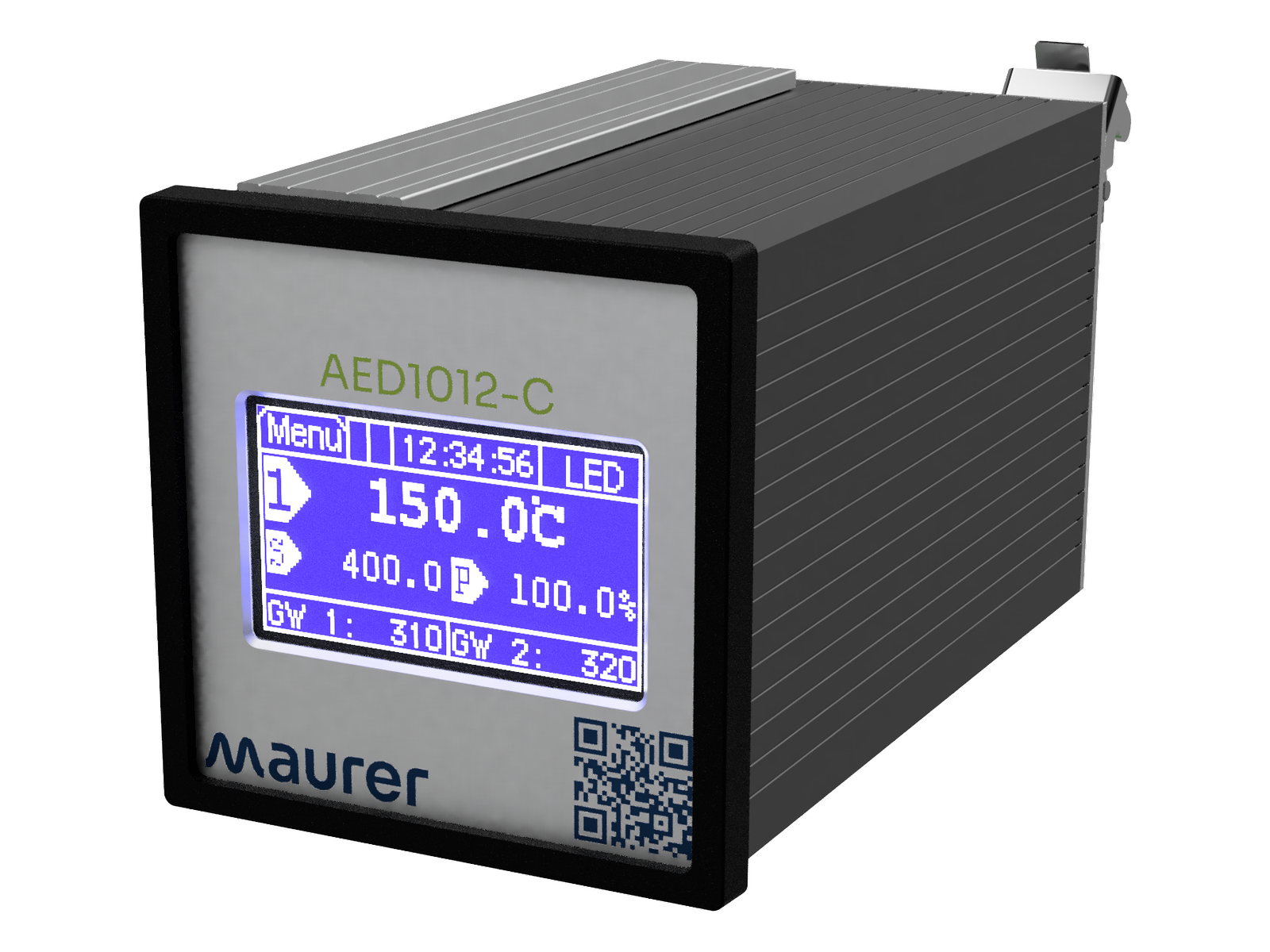

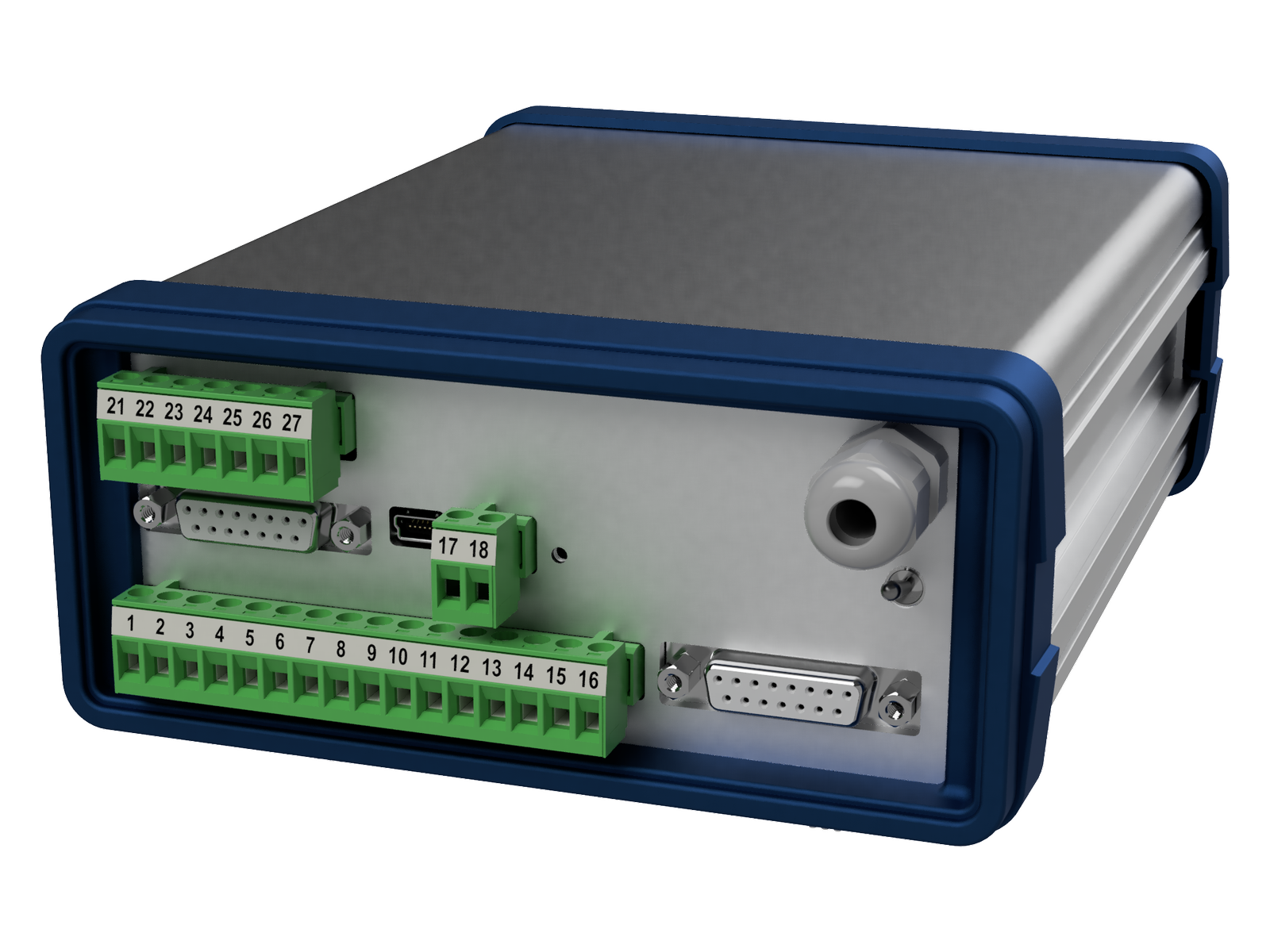

AED 1012-C – Temperature control for generators
The AED 1012-C controls the power of a generator directly based on the measured temperature, e.g. for induction hardening or brazing. The autotune function determines the control parameters automatically.

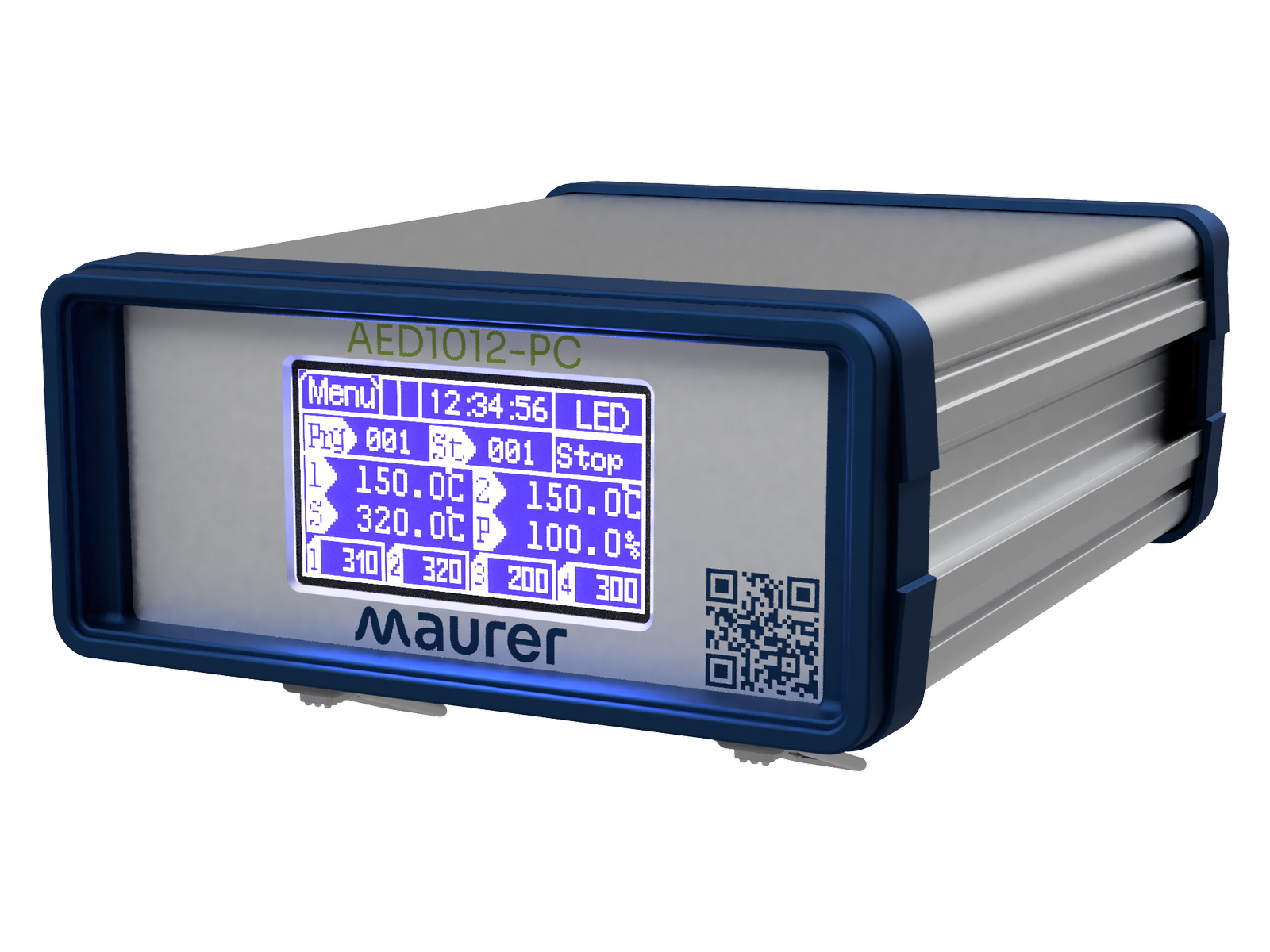

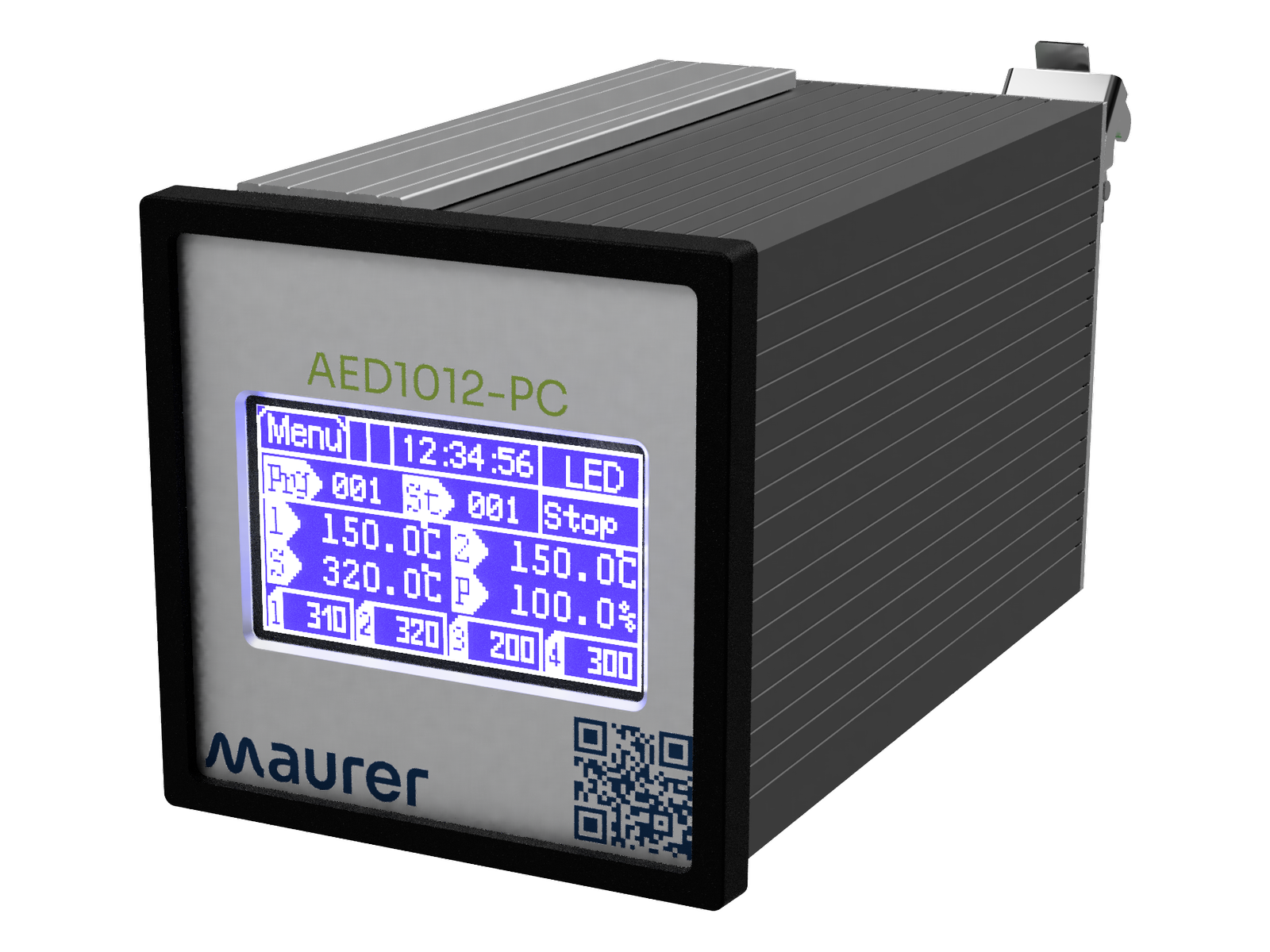

AED 1012-PC – Program controller for complex processes
For processes with fixed temperature profiles such as heating, holding and cooling. Up to 500 programs with a total of 1023 steps can be stored and run automatically.
Accessories
AED-6K adapter strip for up to six pyrometers, IP65 protective housing, mounting brackets for panel installation, housing stand and connection cables.
