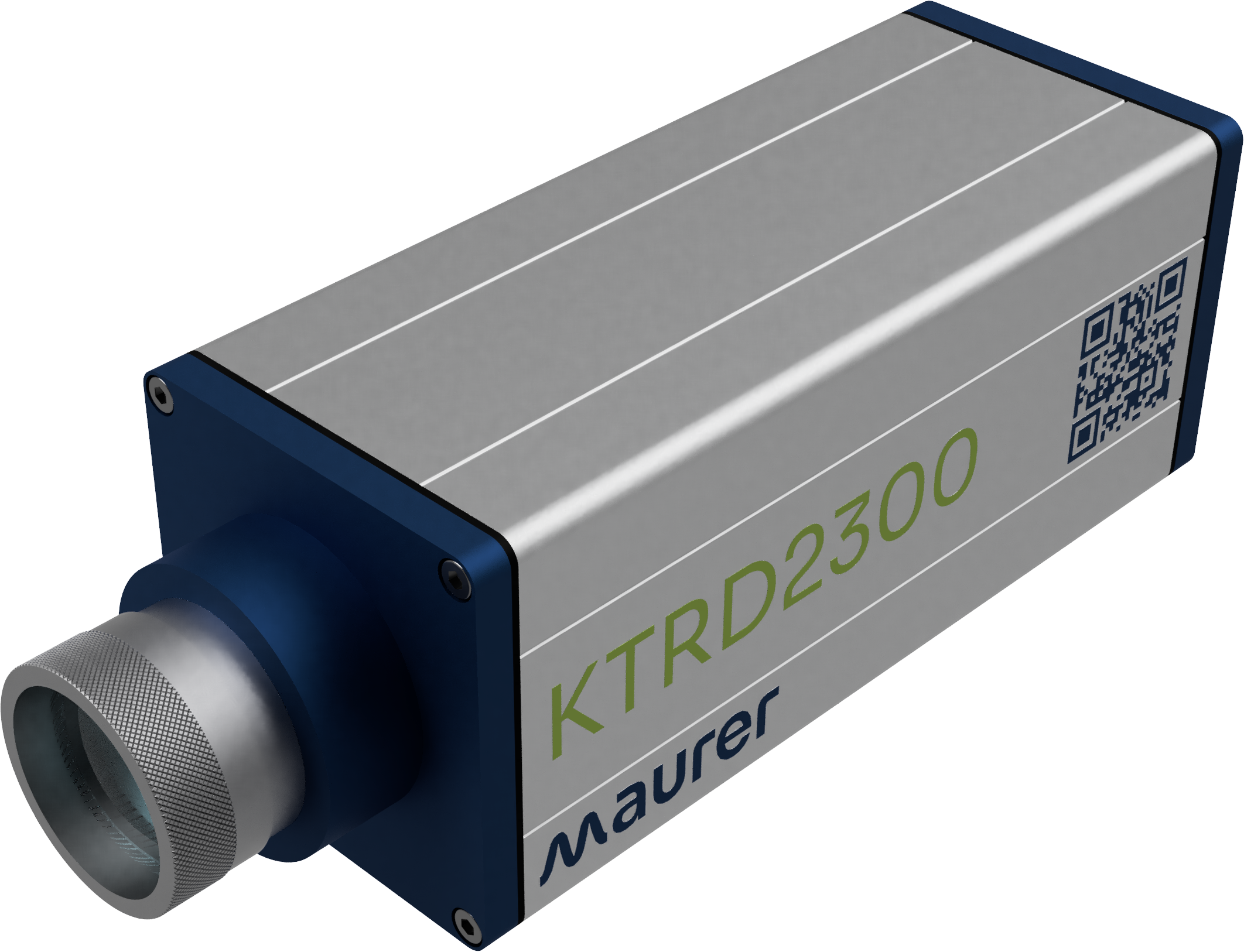

Special pyrometer – KTRD 2300

Measuring ranges from 50 °C to 1200°C

1. 50 – 400 °C
2. 70 – 550 °C
3. 100 – 700 °C
4. 150 – 1200 °C

Special measuring ranges upon request / Subranges freely adjustable within measuring range

Categories: Pyrometer, Universal

Description

Performance, precision and reliability – you can count on MAURER pyrometers. Benefit from maximum adaptability by choosing the right optics, accessories and the appropriate interface. Thus our pyrometer fits perfectly into existing systems.

The most important features and characteristics at a glance:

Spectral range: 2,3 µm
Short response time from < 0,5 ms to 5 ms
Emissivity from 100 – 10 %, adjustable directly at the pyrometer or via interface
Available with either light beam aiming device (LED / Laser)
With Vario-optic for exact focusing on the measuring spot
Use with either digital or analogue output
1 limit output (open collector)
Grid connection 24 V DC
Free Software (IR-LOG) for parameter setting, data recording and storage

Scope of Applications
Processing of steel, iron, non-ferrous metal, wires and ceramics; rolling, soldering, welding, transforming, induction heating; vacuum furnace etc.

Configurations:

Built-in digital display on the backside of the pyrometer
Extensive selection of objectives, suitable for your application

Spectral range	2,3 μm
Target marking	Target light	Viewfinder
Response time	Measuring range 1+2: 5ms Measuring range 3+4: < 0,5ms
Measurement uncertainty	0,5 % ± 1 °C (ε = 1, Tu = 23°C, T 95 = 1s)
Temperature dependence	0,01 % / °C
Reproducibility	0,1 %
Emissivity	100 – 10 %, adjustable directly at the pyrometer or via interface
Resolution	< 0,1 % at the analogue output < 0,1 °C at the interface
Analogue output	0 – 20 mA bzw. 4 – 20 mA (Load max. 500 Ω)
Limit output	1x 24 V 100 mA (open coll.)
Interface	RS 232 ± 50 V isolated or RS 485 ± 70 V isolated
Device connection	8-pol. plug connector for RS485 7-pol. plug connector for RS232
Operating temperature	0 – 60 °C, Optik 150 °C
Storage temperature	-10 °C – 70 °C
Permissible humidity	35 – 85 % RF (non condensing)
Supply voltage	24 V DC ± 10 %
Power consumption	< 100 mA
IP code	IP65
Dimensions (LxHxW) / Weight	30 x 65 x 80 mm / 0,19 kg
Other	Maximum memory, peak value memory double, adjustable time and threshold value, erasing after time, external contact, by software, after every measuring object

	Legende
	A	Optic extraction
	B	Distance from housing
	C	Distance from optics
	Mn	Nomineller mesauring spot size

Measurement range & effektive measuring spot size
1	Aperture = 1,0mm	Me = Mn x 1,0
2	Aperture = 0,7mm	Me = Mn x 0,7
3	Aperture = 0,5mm	Me = Mn x 0,5
4	Aperture = 0,3mm	Me = Mn x 0,3

Optic: **IR 2050 N0D**
A [mm]	B [mm]	C [mm]	Mn [mm]
13,0	158,0	102,0	1,7
6,7	166,7	117,0	2,0
0,0	180,0	137,0	2,5

Optic: **IR 2050 N1D**
A [mm]	B [mm]	C [mm]	Mn [mm]
13,0	190,0	146,6	2,7
10,6	200,0	159,2	2,9
7,2	220,0	182,6	3,0
4,2	240,0	205,6	3,5
2,7	260,0	227,1	4,0
2,0	280,0	247,8	4,5
0,0	300,0	269,8	5,0

Optic: **IR 2050 N2D**
A [mm]	B [mm]	C [mm]	Mn [mm]
13,0	200	166,0	3,0
10,5	220	188,5	3,4
7,7	250	221,3	4,0
5,4	300	273,6	5,0
3,5	350	325,5	69,0
2,6	400	376,4	7,0
1,4	450	427,6	8,1
0,9	500	478,1	9,1
0,5	550	528,5	10,1
0,0	600	579,0	11,2

Optic: **IR 2050 TD**
A [mm]	B [mm]	C [mm]	Mn [mm]
13,0	220	186,0	3,7
9,0	300	270,	5,2
6,5	400	372,5	7,3
5,0	500	474,0	9,7
3,1	800	775,9	15,5
2,0	1000	977,0	20,0
1,0	2000	1978,0	42,0
0,6	3000	2978,4	63,0
0,2	5000	4978,8	107,0

KTRD2300 with target light

KTRDxxx with target light

KTRD2300 with viewfinder

KTRDxxx witzh viewfinder
