Measuring ranges from 100°C to 2500 °C
1. 100 – 1800 °C
2. 300 – 2500 °C
Special measuring ranges upon request

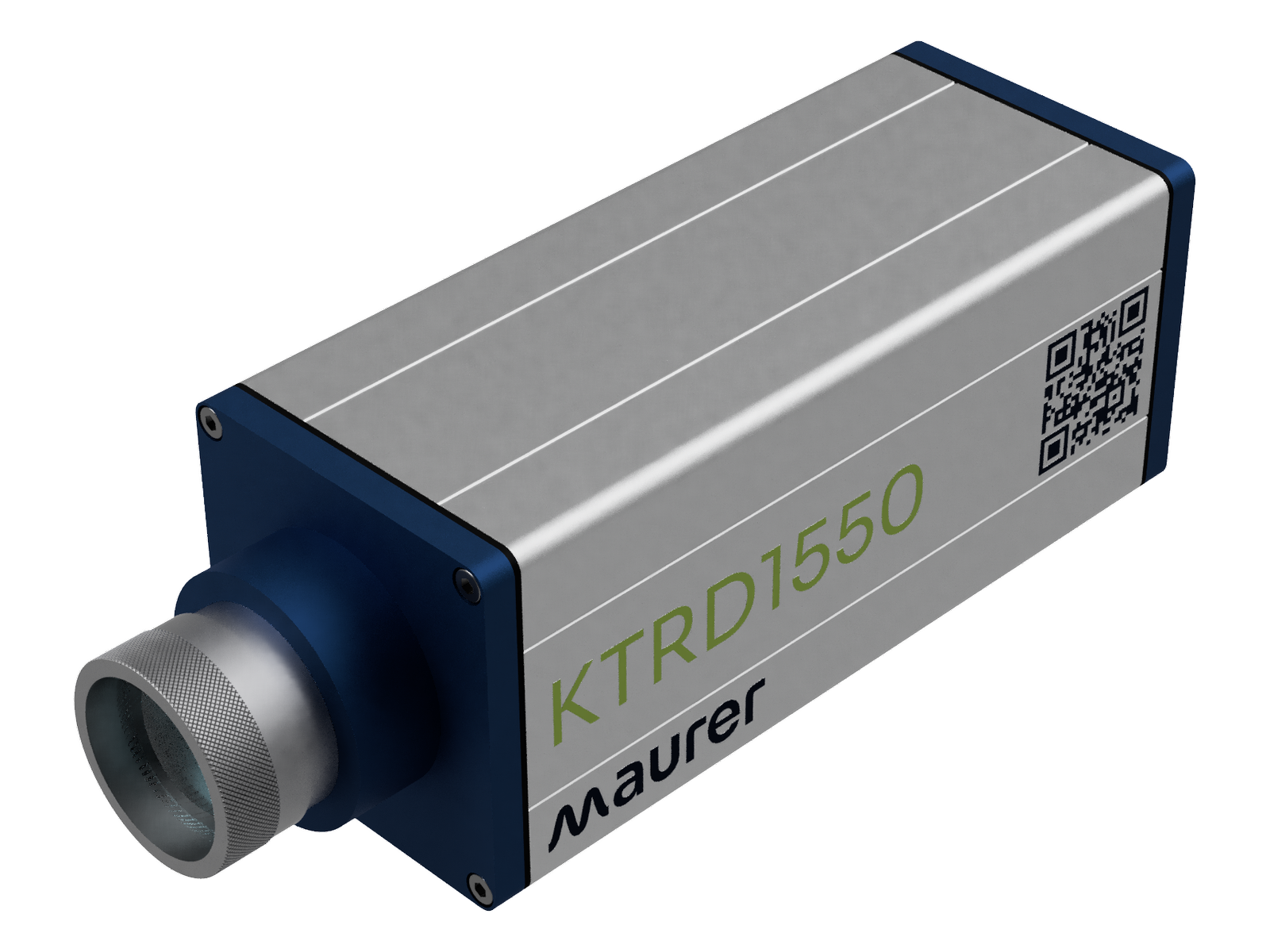

Special pyrometer – KTRD 1550
Description
Performance, precision and reliability – you can count on MAURER pyrometers. Benefit from maximum adaptability by
choosing the right optics, accessories and the appropriate interface. Thus our pyrometer fits perfectly into existing
systems.
The most important features and characteristics at a glance:
- Spectral range: 5,0 μm
- Short response time from 0,5 to 5ms
- Emissivity from 100 – 10 %, adjustable directly at the pyrometer or via interface
- Available with either light beam aiming device (LED / Laser) or viewfinder
- With Vario-optic for exact focusing on the measuring spot
- Use with digital and analogue output
- 1 limit output (open collector)
- Grid connection 24 V DC
- Free Software (IR-LOG) for parameter setting, data recording and storage
Scope of Applications:
Processing of ceramics and glass
Configurations
- Built-in digital display on the backside of the pyrometer
- Extensive selection of objectives, suitable for your application
| Spectral range | 5,0 μm | |
| Target marking | Target light | Viewfinder |
| Response time | Measuring range 1: 5ms Measuring range 2: < 0,5ms | |
| Measurement uncertainty | 0,5 % ± 1 °C (ε = 1, Tu = 23°C, T 95 = 1s) | |
| Temperature dependence | 0,01 % / °C | |
| Reproducibility | 0,1 % | |
| Emissivity | 100 – 10 %, adjustable directly at the pyrometer or via interface | |
| Resolution | < 0,1 % at the analogue output < 0,1 °C at the interface | |
| Analogue output | 0 – 20 mA bzw. 4 – 20 mA (Load max. 500 Ω) | |
| Limit output | 1x 24 V 100 mA (open coll.) | |
| Interface | RS 232 ± 50 V isolated or RS 485 ± 70 V isolated | |
| Device connection | 8-pol. plug connector for RS485 7-pol. plug connector for RS232 |
|
| Operating temperature | 0 – 60 °C, Optik 150 °C | |
| Storage temperature | -10 °C – 70 °C | |
| Permissible humidity | 35 – 85 % RF (non condensing) | |
| Supply voltage | 24 V DC ± 10 % | |
| Power consumption | < 100 mA | |
| IP code | IP65 | |
| Dimensions (LxHxW) / Weight | 30 x 65 x 80 mm / 0,19 kg | |
| Other | Maximum memory, peak value memory double, adjustable time and threshold value, erasing after time, external contact, by software, after every measuring object | |
 |
Legende | |
| A | Optic extraction | |
| B | Distance from housing | |
| C | Distance from optics | |
| Mn | Nomineller measurement spot size | |
| Measurement range & effektive measuremenet spot size | ||
| 1 | Aperture = 1,0mm | Me = Mn x 1,0 |
| 2 | Aperture = 0,5mm | Me = Mn x 0,5 |
| 3 | Aperture = 0,3mm | Me = Mn x 0,3 |
| A [mm] | B [mm] | C [mm] | Mn [mm] |
|---|---|---|---|
| 240 | 206,0 | 13,0 | 2,5 |
| 300 | 270,1 | 8,9 | 3,1 |
| 400 | 373,7 | 5,3 | 3,9 |
| 500 | 474,9 | 4,1 | 5,0 |
| 800 | 777,2 | 1,8 | 8,7 |
| 1000 | 977,5 | 1,5 | 9,8 |
KTRD1550 mit Ziellicht
KTRD1550 mit Visiereinrichtung
