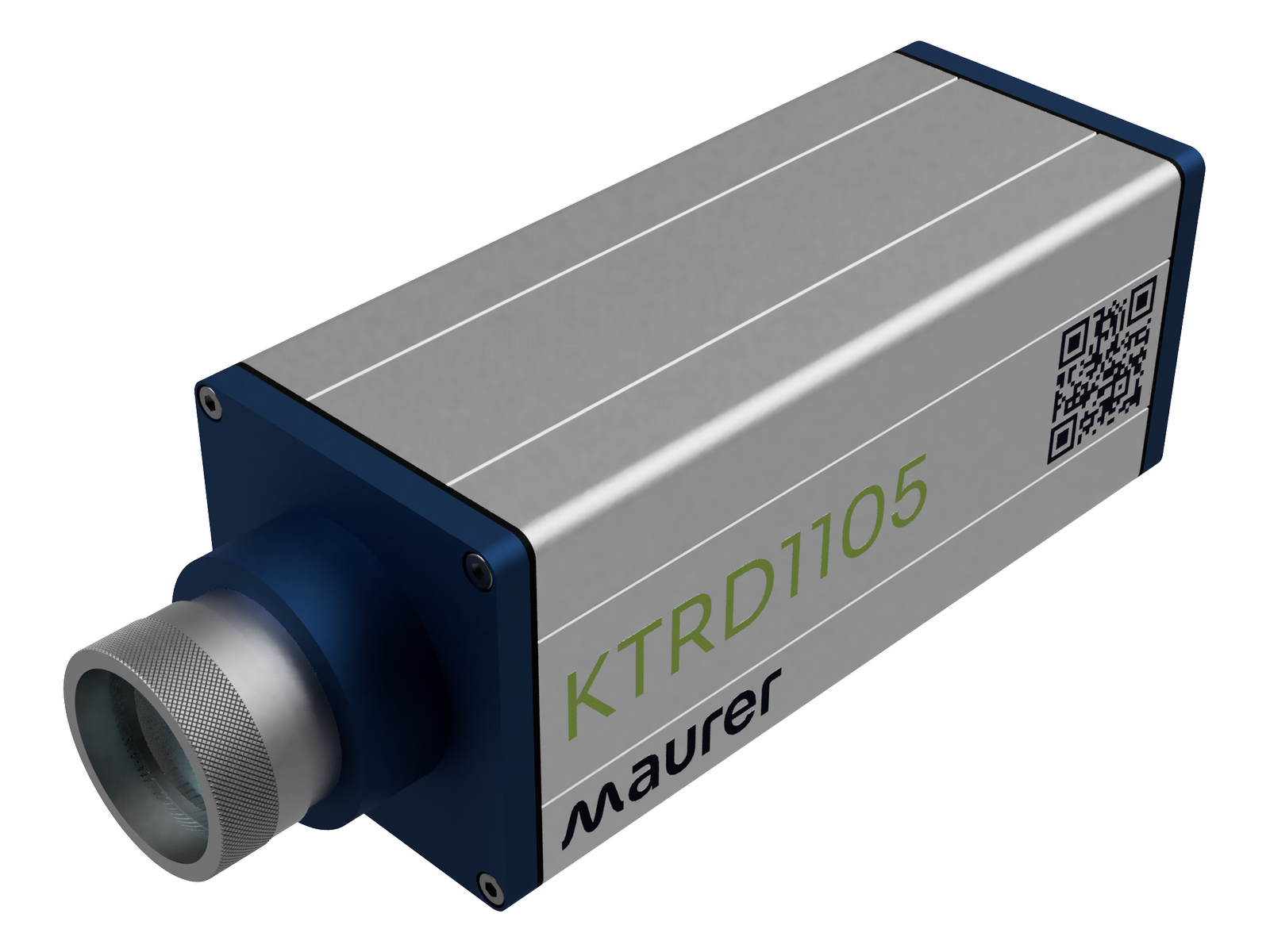

Special pyrometer – KTRD 1105

Measuring ranges from -40 °C to 1000 °C

1. -40 – 800 °C
2. -10 – 900 °C
3. 0 – 100 °C
4. 0 – 500 °C
5. 100 – 1000 °C

Special measuring ranges upon request

Categories: Pyrometer, Universal

Description

Performance, precision and reliability – you can count on MAURER pyrometers. Benefit from maximum adaptability by choosing the right optics, accessories and the appropriate interface. Thus our pyrometer fits perfectly into existing systems.

The most important features and characteristics at a glance:

Spectral range: 8 – 14 μm
Short response time of <100 ms
Emissivity from 100 – 10 %, adjustable directly at the pyrometer or via interface
Available with either light beam aiming device (LED / Laser)
Green target light (LED) that is exactly identical to the actual measuring spot in position and size
With Vario-optic for exact focusing on the measuring spot
Use with either digital and analogue output
1 limit output (open collector)
Operating voltage 24 V DC
Free Software (IR-LOG) for parameter setting, data recording and storage

Scope of Applications
Processing of ceramics, rubber, paper, wood, food, asphalt, building material, electronic components, plastics, as well as plastic deep-drawing, lacquering drying, drying processes etc.

Configurations

High speed version: KTRD 1105-HS
Built-in digital display on the backside of the pyrometer
Extensive selection of objectives, suitable for your application

Spectral range	8 – 14
Target marking	Target light	Viewfinder
Response time	Measuring range 1: 5ms Measuring range 2+3: < 0,5ms
Measurement uncertainty	0,5 % ± 1 °C (ε = 1, Tu = 23°C, T 95 = 1s)
Temperature dependence	0,01 % / °C
Reproducibility	0,1 %
Emissivity	100 – 10 %, adjustable directly at the pyrometer or via interface
Resolution	< 0,1 % at the analogue output < 0,1 °C at the interface
Analogue output	0 – 20 mA bzw. 4 – 20 mA (Load max. 500 Ω)
Limit output	1x 24 V 100 mA (open coll.)
Interface	RS 232 ± 50 V isolated or RS 485 ± 70 V isolated
Device connection	8-pol. plug connector for RS485 7-pol. plug connector for RS232
Operating temperature	0 – 60 °C, Optik 150 °C
Storage temperature	-10 °C – 70 °C
Permissible humidity	35 – 85 % RF (non condensing)
Supply voltage	24 V DC ± 10 %
Power consumption	< 100 mA
IP code	IP65
Dimensions (LxHxW) / Weight	30 x 65 x 80 mm / 0,19 kg
Other	Maximum memory, peak value memory double, adjustable time and threshold value, erasing after time, external contact, by software, after every measuring object

	Legende
	A	Optikauszug
	B	Abstand ab Gehäusekante
	C	Abstand ab Optik Vorderkante
	Mn	Nomineller Messfleck Duchmesser

Messbereich und effektiver Messfleck Duchmesser
1	Messblende = 1,0mm	Me = Mn x 1,0
2	Messblende = 0,5mm	Me = Mn x 0,5
3	Messblende = 0,3mm	Me = Mn x 0,3

Optic: **IR 1040**
A [mm]	B [mm]	C [mm]	Mn [mm]
150	116,0	13,0	3,0
200	170,8	8,2	4,0
300	273,9	5,1	6,8
400	375,2	3,8	9,5
500	476,5	2,5	12,2
600	577,3	1,7	15,5
700	677,7	1,3	17,3
800	778,2	0,8	20,6
900	878,6	0,4	24,2
1000	979,0	0,0	29,4

Optic: **IR 1060-N**
A [mm]	B [mm]	C [mm]	Mn [mm]
300	244,0	13,0	3,4
350	298,0	9,0	4,0
400	350,6	6,4	4,9
450	402,3	4,7	6,0
500	454,0	3,0	6,6
550	505,0	2,0	7,7
600	55,0	1,0	8,5
650	607,0	0,0	9,3
700	657,0	0,0	10,0
900	857,0	0,0	22,2

Optic: **IR 1060-T**
A [mm]	B [mm]	C [mm]	Mn [mm]
440	384,0	13,0	5,4
500	444,8	12,2	6,1
600	547,3	9,7	7,8
700	649,1	7,9	8,6
800	750,2	6,8	10,4
900	851,0	6,0	12,0
1000	951,3	5,7	13,6
1500	1452,2	4,8	21,0
2000	1952,6	4,4	29,8
3000	2954,5	2,5	42,0
4000	3955,6	1,4	60,0
5000	4956,0	1,0	75,0
