Measuring ranges from 550 °C to 4000 °C
1. 550 – 1800 °C
2. 600 – 1600 °C
3. 650 – 3000 °C
4. 600 – 2000 °C
5. 1000 – 4000 °C
Special measuring ranges upon request

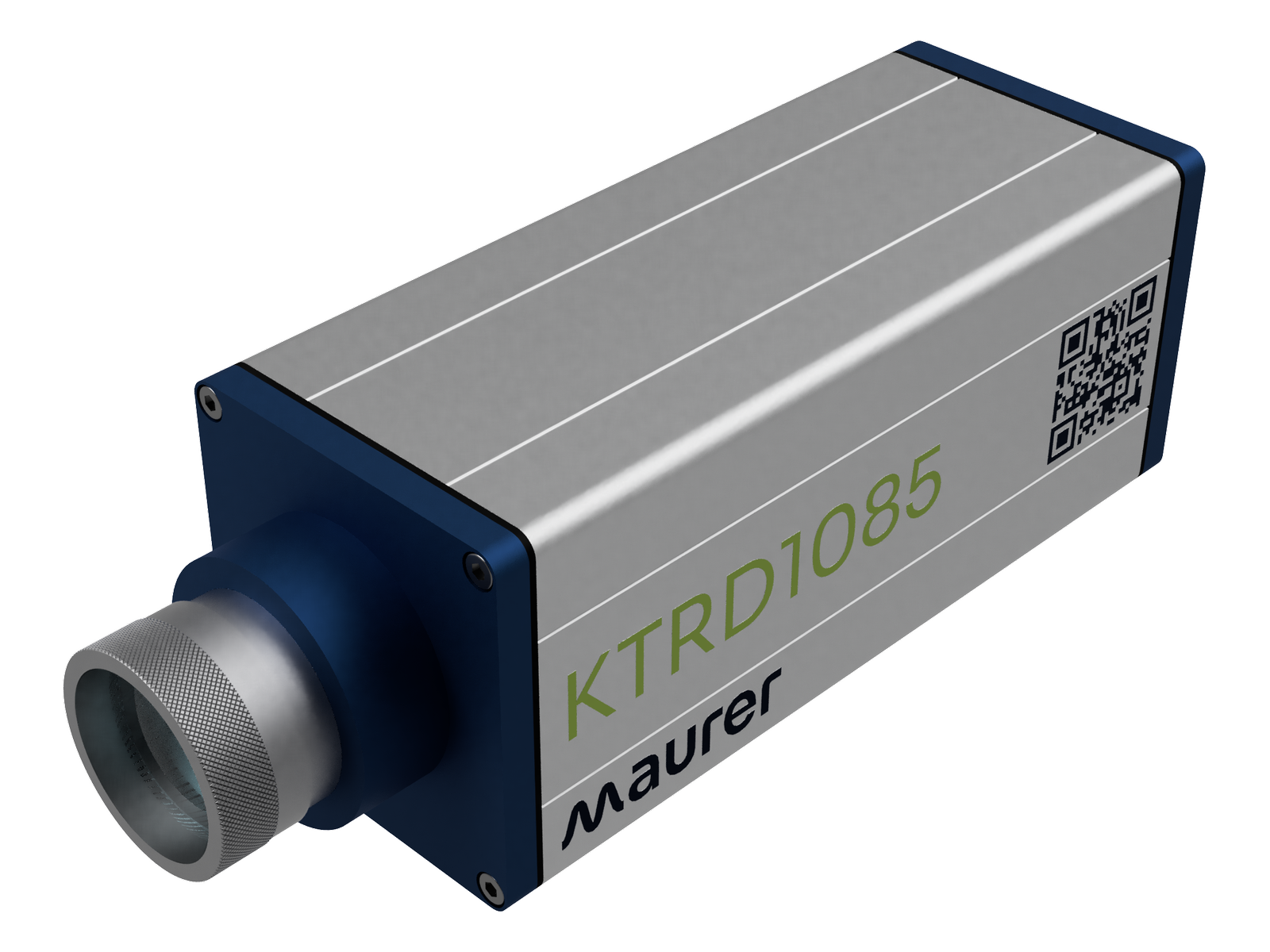

Universal pyrometer – KTRD 1085
Description
Performance, precision and reliability – you can count on MAURER pyrometers. Benefit from maximum adaptability by choosing the right optics, accessories and the appropriate interface. Thus our pyrometer fits perfectly into existing systems.
The most important features and characteristics at a glance:
- Spectral range: 0,85 – 1,1 μm
- Short response time of less than 0,5 ms
- Emissivity from 100 – 10 %, adjustable directly at the pyrometer or via interface
- Available with either light beam aiming device (LED / Laser) or viewfinder
- Green target light (LED) that is exactly identical to the actual measuring spot in position and size
- With Vario-optic for exact focusing on the measuring spot
- Use with either digital and analogue output
- 1 limit output (open collector)
- Operating voltage 24 V DC
- Free Software (IR-LOG) for parameter setting, data recording and storage
Scope of Applications
Processing of steel, iron, non-ferrous metal and wires, ceramics, glass tub, glass arching, as well as hardening, rolling, soldering, forging, welding, transforming, induction heating, vacuum furnace, etc.
Configurations
- High speed version: KTRD 1065-HS
- Built-in digital display on the backside of the pyrometer
- Extensive selection of objectives, suitable for your application
| Spectral range | 0,85 – 1,1 μm | |
| Target marking | Target light | Viewfinder |
| Response time | < 1 ms, with dynamic adjustment | |
| Measurement uncertainty | 0,5 % ± 1 °C (ε = 1, Tu = 23°C, T 95 = 1s) | |
| Temperature dependence | 0,01 % / °C | |
| Reproducibility | 0,1 % | |
| Emissivity | 100 – 10 %, adjustable directly at the pyrometer or via interface | |
| Resolution | < 0,1 % at the analogue output < 0,1 °C at the interface | |
| Analogue output | 0 – 20 mA bzw. 4 – 20 mA (Load max. 500 Ω) | |
| Limit output | 1x 24 V 100 mA (open coll.) | |
| Interface | RS 232 ± 50 V isolated or RS 485 ± 70 V isolated | |
| Device connection | 8-pol. plug connector for RS485 7-pol. plug connector for RS232 |
|
| Operating temperature | 0 – 60 °C, Optik 150 °C | |
| Storage temperature | -10 °C – 70 °C | |
| Permissible humidity | 35 – 85 % RF (non condensing) | |
| Supply voltage | 24 V DC ± 10 % | |
| Power consumption | < 100 mA | |
| IP code | IP65 | |
| Dimensions (LxHxW) / Weight | 30 x 65 x 80 mm / 0,19 kg | |
| Other | Maximum memory, peak value memory double, adjustable time and threshold value, erasing after time, external contact, by software, after every measuring object | |
 |
Legende | |
| A | Optik extraction | |
| B | Distance from housing | |
| C | Distance from optics | |
| Mn | Nomineller mesauring spot size | |
| Measurement range & effektive measuring spot size | ||
| 1 | Aperture = 1,0mm | Me = Mn x 1,0 |
| 2 | Aperture = 0,5mm | Me = Mn x 0,5 |
| 3 | Aperture = 0,3mm | Me = Mn x 0,3 |
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
KTRD10xx with target light
KTRD10xx with viewfinder
