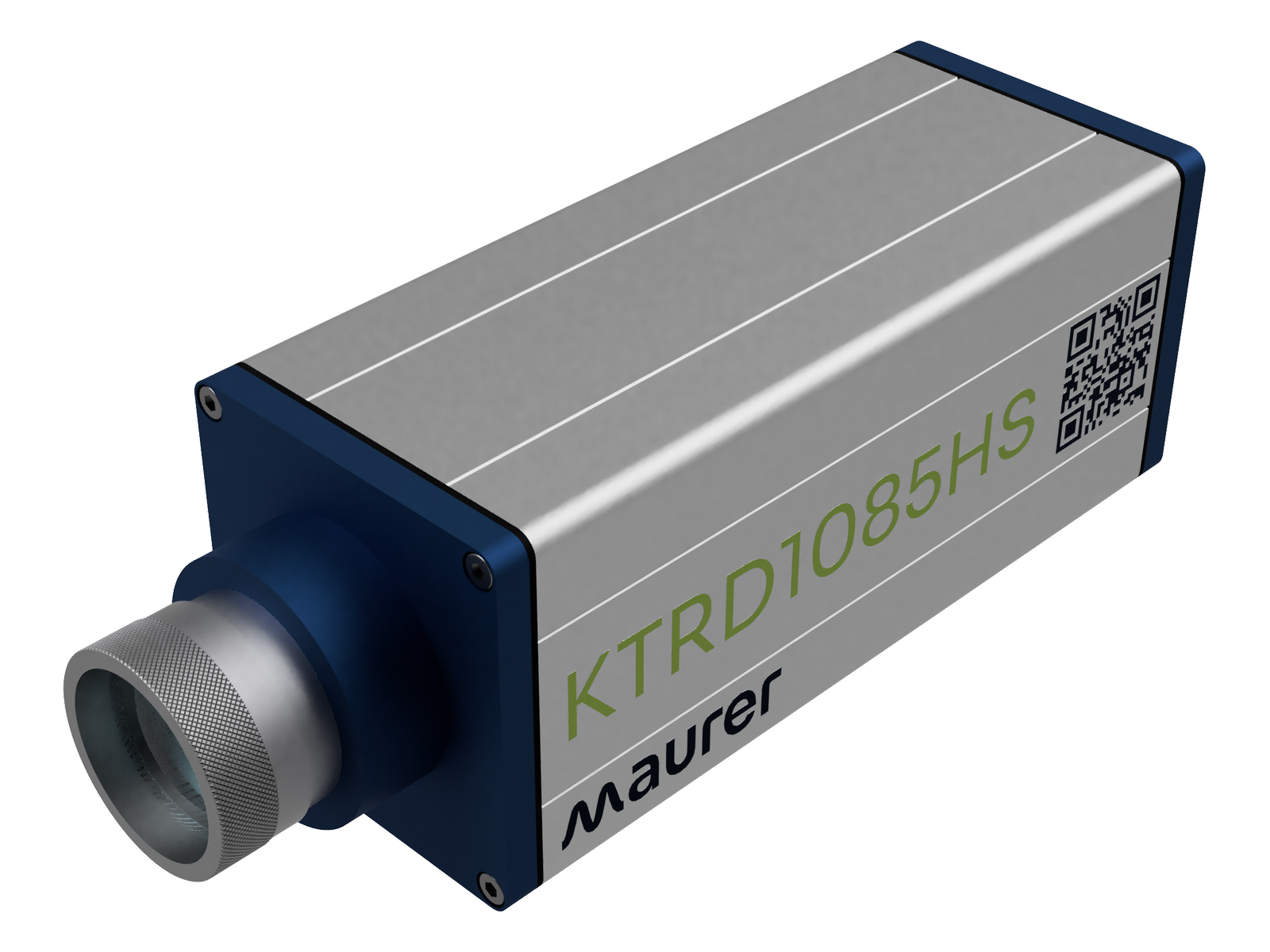

Highspeed pyrometer – KTRD 1085 HS

Measuring ranges from 700 °C to 1600 °C

1. 700 – 1600 °C

Special measuring ranges upon request

Categories: Pyrometer, Universal

Description

Performance, precision and reliability – you can count on MAURER pyrometers. Benefit from maximum adaptability by choosing the right optics, accessories and the appropriate interface. Thus our pyrometer fits perfectly into existing systems.

The most important features and characteristics at a glance:

Spectral range: 0,85 – 1,1 μm
Ultra short response time of 100 µsec
Emissivity from 100 – 10 %, adjustable directly at the pyrometer or via interface
Available with either light beam aiming device (LED / Laser) or viewfinder
Green target light (LED) that is exactly identical to the actual measuring spot in position and size
With Vario-optic for exact focusing on the measuring spot
Use with either digital and analogue output
1 limit output (open collector)
Operating voltage 24 V DC
Free Software (IR-LOG) for parameter setting, data recording and storage

Scope of Applications
Processing of steel, iron, non-ferrous metal and wires, as well as rolling, soldering, annealing, hardening, forging, transforming, induction heating, etc.

Configurations

Version with optic: KTRD 1085
Built-in digital display on the backside of the pyrometer
Extensive selection of objectives, suitable for your application

Spectral range	0,85 – 1,1 μm
Target marking	Target light	Viewfinder
Response time	100 µsec
Measurement uncertainty	0,5 % ± 1 °C (ε = 1, Tu = 23°C, T 95 = 1s)
Temperature dependence	0,01 % / °C
Reproducibility	0,1 %
Emissivity	100 – 10 %, adjustable directly at the pyrometer or via interface
Resolution	< 0,1 % at the analogue output < 0,1 °C at the interface
Analogue output	0 – 20 mA bzw. 4 – 20 mA (Load max. 500 Ω)
Limit output	1x 24 V 100 mA (open coll.)
Interface	RS 232 ± 50 V isolated or RS 485 ± 70 V isolated
Device connection	8-pol. plug connector for RS485 7-pol. plug connector for RS232
Operating temperature	0 – 60 °C, Optik 150 °C
Storage temperature	-10 °C – 70 °C
Permissible humidity	35 – 85 % RF (non condensing)
Supply voltage	24 V DC ± 10 %
Power consumption	< 100 mA
IP code	IP65
Dimensions (LxHxW) / Weight	30 x 65 x 80 mm / 0,19 kg
Other	Maximum memory, peak value memory double, adjustable time and threshold value, erasing after time, external contact, by software, after every measuring object

	Legende
	A	Optik extraction
	B	Distance from housing
	C	Distance from optics
	Mn	Nomineller mesauring spot size

Measurement range & effektive measuring spot size
1	Aperture = 1,0mm	Me = Mn x 1,0
2	Aperture = 0,5mm	Me = Mn x 0,5
3	Aperture = 0,3mm	Me = Mn x 0,3

Optic: **A 1050-N1-6**
A [mm]	B [mm]	C [mm]	Mn [mm]
190	147	13	2,6
200	161,3	8,7	2,8
210	173,5	6,5	3
220	185,6	4,4	3,4
230	197,2	2,8	3,6
240	208,1	1,9	4
255	225	0	4,2

Optic: **A 1060-N1-6**
A [mm]	B [mm]	C [mm]	Mn [mm]
285	229	13	3,2
300	245,5	11,5	3,6
350	299,7	7,3	4,4
400	352,5	4,5	5,2
450	404,4	2,6	6,2
500	455,7	1,3	7,2
550	506,7	0,3	8,2
570	527	0	8,8

Optic: **A 1050-N2-6**
A [mm]	B [mm]	C [mm]	Mn [mm]
210	154	13	3
220	166,1	10,9	3,2
240	188,9	8,1	3,8
260	210,5	6,5	4,4
280	232,1	4,9	5
300	253,4	3,6	5,4
320	274,4	2,6	6
340	295,2	1,8	6,4
360	315,9	1,1	7
380	336,5	0,5	7,4
400	357	0	8

Optic: **A 1060-N2-6**
A [mm]	B [mm]	C [mm]	Mn [mm]
310	254	13	4
350	296,5	10,5	5
400	349	8	6
500	452	5	8
600	534	3	10
700	655	2	12
800	755,8	1,2	13,6
900	856,4	0,6	14,6
1000	957	0	17,6

Optic: **A 1060-T-6**
A [mm]	B [mm]	C [mm]	Mn [mm]
360	304	13	5
400	375,7	11,3	5,7
500	478,6	8,4	7
600	580,5	6,5	8,7
700	681,6	5,4	10,3
800	782,4	4,6	12,3
900	883,1	3,9	14
1000	983,7	3,3	16
2000	1985,5	1,5	33
3000	2986,2	0,8	50
4000	3986,5	0,5	68,3
5000	4986,7	0,3	86,7
